a.Application: supply variable frequency  three -phase emergency power  supply  for fire facility only  having s ingle  power  supply or  motor  of primary  load ,  to  solve  the  problem of  motor power supply and reduce the impulse to power device during starting. Example: water pump motor, fan motor or other devices motors.
b.Specification range: 2.2KW-800KW
c.Detail specification: 2.2, 3.7, 5.5, 7.5, 11, 15, 18.5, 22, 30, 37, 45, 55, 75, 93, 110, 132, 160, 187, 200, 220, 250, 280, 315, 400, 500KW, etc.
d.Installation: floor type ( standard power distribution box)
Standby time: 120min, it also can be set according todesign requirement.

Example:

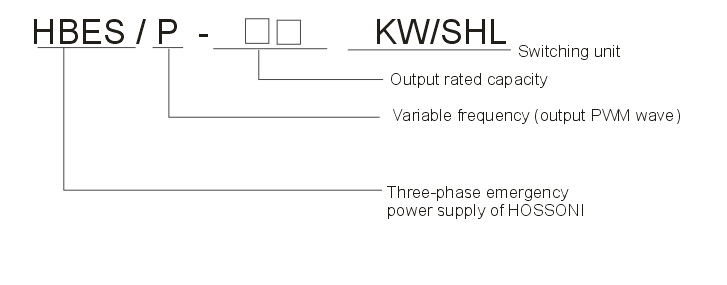

HBES/P-11KW, variable frequency three-phase emergency power supply, outputs PWM wave, its rated applicable
motor capacity is 11KW. HBES/P-11KW/SHL, switching unit, its output rated capacity is 11KW.

Note:
1.HBES/P series is only for one-to-one motor, HBES/P series itself contains function of starting through frequency
    conversion.
2.Automatic switching unit is optional part, HBES/P series EPS itself contains fire response.
3.The scale between output rated capacitor of HBES/P series power supply and motor load is 1.1, example:
    a load of 55KW (motor load) uses this power supply, HBES/P-55KW shall be provided for it.
4.For EPS with same capacity, HBES/P series EPS price is not higher than HBES series EPS.
